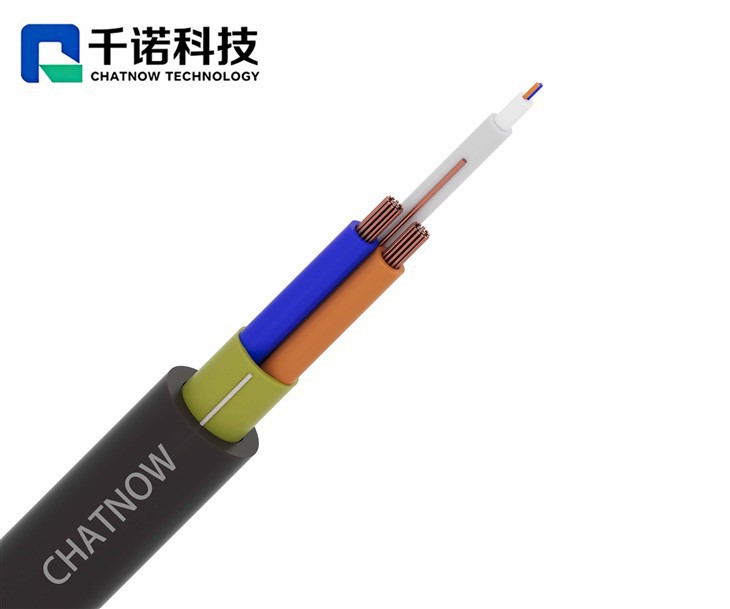

Composite Hluav Taws Xob 16AWGx2C+2/Fiber Cable

Style: Composite Cable Loose Tube Fiber+2C
Loj: 2 × 16AWG + Tube FIBER
Hauv kev sib txuas lus sab nraum zoov thiab kev tsim kho vaj tse, cables feem ntau yuav tsum tau muab kev sib txuas lus kho qhov muag thaum tib lub sijhawm nqa lub zog ntev dua.Tam sim no, kev cuam tshuam ib puag ncig thiab cov neeg kho tshuab kev ntxhov siab qhov chaw xav tau ntau dua ntawm cov qauv cable thiab durability.This puas cable sib txuas xoob raj optical fiber nrog ob 16AWG tooj liab fais fab conductors, tsim ib qho kev ua tau zoo rau kev ua haujlwm, kev tiv thaiv kev sib txuas thiab kev sib txuas lus.

Xa kev nug

Hauj lwm lawm

Kev tsis

APPLICATION

Qhov kev teeb tsa cable no feem ntau xaiv rau:

Sab nraum zoov kev sib txuas lus systems thiab nkag mus rau tes hauj lwm
Industrial infrastructure nrog ua ke teeb liab thiab lub zog routing
Cov cuab yeej kev teeb tsa raug rau ib puag ncig kev ntxhov siab
Cov haujlwm uas muaj kev tiv thaiv fiber ntau thiab lub zog ruaj khov yog qhov tseem ceeb sib npaug

Kev tsim kho

Cov khoom siv coj ua	Stranded liab qab tooj liab
Tus coj	16AWG (65/0.16mm)
Core Insulation Khoom	LSZH/2CLiab / Dub
Fiber Optic	Loose tube / 2C Xiav / Txiv kab ntxwv
Central Strength Member	Xov Paj Dawb
Rip qaum	Xaiv tau
Txheej txheej	PE
Nom. OD	6.30 ± 0.20 hli

CHARACTERISTIS

Kev ua haujlwm cable	Cov ntaub ntawv ntawm cov khoom
(20 degree) Inner conductor DCresistance	16AWG Tsawg dua lossis sib npaug 13.70 / km
Max.Pullingtension	133N
Kev khiav hauj lwm kub	40℃rau +70 degree
Optical attenuation @ 1310 nm	AvgMax(dB/km) 0.35/0.5
Min.Bending radii rau fibers	Installation / kev khiav hauj lwm: 25mm Max.increase 0.02 dB / tig @ 1550nm nrog 32 mm Max.increase 0.20 dB / tig @ 1550nm nrog 20 mm
Min.Bending radii cable	15×D

Kev ntim khoom tsis tu ncua

100M, 300M, 500M, 1000M, 500FT, 1000FT, Coil / Nruas

Yog vim li cas Loose Tube Fiber yog siv nyob rau hauv Composite Cables

Loose tube fiber ntau yog siv dav hauv kev siv sab nraum zoov vim lawv muaj peev xwm:

Tiv thaiv cov fibers optical los ntawm txhua yam kev ntxhov siab thiab qhov kub thiab txias
Tso cai tswj fiber ntau txav hauv lub raj
Ua kom ruaj khov kho qhov muag ua haujlwm hauv qhov chaw hloov pauv

Thaum ua ke nrog tooj liab fais fab conductors nyob rau hauv ib lub cable, cov qauv no txhawb nqantev -deploymentthaum tuav kev sib txuas lus kho qhov muag txhim khu kev qha.
